خلية تحميل وزن| Load Cell Compression Force Sensor NC4
NC4 عبارة عن خلية تحميل من نوع العمود ، بسعة قصوي تصل إلى 60 طن ، خلية تحميل الضغط مصنوعة من مادة الفولاذ المقاوم للصدأ المستخدمة في ميزان الشاحنات ، جسر وزن السكك الحديدية ، مقياس النطاط ، نظام الوزن الصناعي. ملحق كامل مجهز لضمان جودة مستشعر خلية تحميل العمود.
- Item NO.:NC4
- Product Orgin:China
- Shipping Port:Xiamen
- Payment:100% payment before shipment
- Capacities:15-60t
- Material:Stainless Steel
- Dimension:φ85*160mm; φ85*260mm;
- Rated Output:2.0mV/V
- Protection Class:IP67 / IP68
Compare

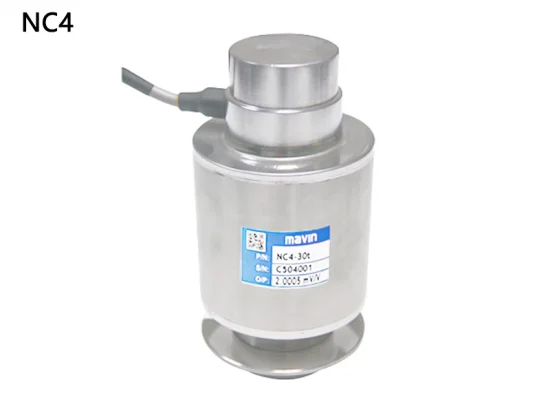

Stainless steel Column type Load Cell NC4 (15-60T)
The NC4 is a Column Type load cell, with a higher capacity up to 60T, The compression load cell is mad e of Stainless Steel material used for Truck Scale, Rail weighbridge, Hopper Scale, Industrial weighing system. Complete accessory equipped for quality guarantee of column load cell sensor.
Key Features：
High profile with column type
Stainless Steel material with welding sealed
Capacity: 15-60T
Precision: 0.03%R.O.
Protection class: IP67/PI68
Rated Output : 2.0 mV/V±0.25%
Usage & Applications：
Truck Scale;
Rail Weighbridge;
Hopper Scale;
Industrial weighing systems;

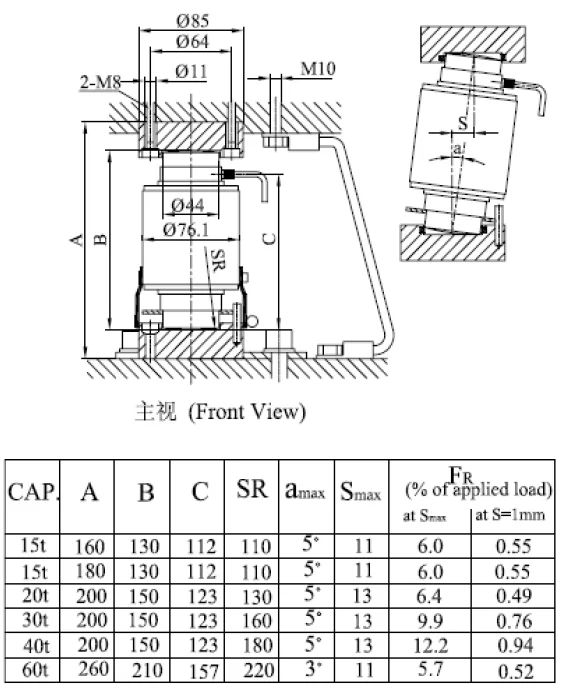

Dimension：
NC4 Specification：
| Rated Capacities | 15, 20, 30, 40, 60 ( t ) |
| Rated Output | 2.0mV/V±0.25% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.03% R.O. |
| Hysteresis | 0.03% R.O. |
| Repeatability | 0.03% R.O. |
| 30mins Creep | 0.03% R.O. |
| 30mins Return | 0.03% R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 700±20 Ω |
| Output Impedance | 706±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Stainless Steel |
| Protection Class | IP67 / IP68 |
| Cable | φ6×12m(<40t); φ6×20m(≥40t) |
| Recommended Platform Size | |
| Mode of Connection | Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
